Surgeon Scrub Sinks

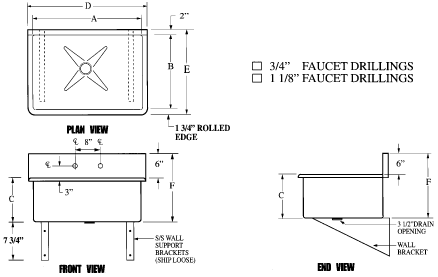

| Modle# | Bowl Size |
O.A. Dims |
Weight |
||||
A |
B |
C |
D |
E |
F |
||
| SCS-1814 | 18" |
14" |
12" |
21 1/2" |
17 3/4" |
18" |
59 lbs |
| SCS-2216 | 22" |
16" |
10" |
25 1/2" |
19 3/4" |
16" |
63 lbs |
| SCS-2820 | 28" |
20" |
10" |
31 1/2" |
23 3/4" |
16" |
67 lbs |
| SCS-2-2020 | 44" |
20" |
10" |
47 1/2" |
23 3/4" |
16" |
124 lbs |
Performance Specifications
A multipurpose sink fabricated in 14 gauge 304 type stainless steel. Wall mounted with cantilevered and flush mount wall brackets to provide maximum support. The sanitary design includes 1 3/4” rolled rim, 3/4” interior cove corners for easy cleaning and maintenace.
Mechanical Specifications
• Heavy-duty 14 gauge 304 stainless steel
• Standard 3 1/2” die raised drain opening
• Fully welded, seamless, polished fabrication to uniform brush finish for sanitary environments
• Integral 6” stainless steel backsplash with 2” return to wall at 90 degree angle
• Faucet hole drillings through the backsplash, 8” on center for 2 single spouts or mixing facets
• Cantilevered and flush mount brackets for installation. 14 gauge 304 stainless steel
Features
• NSF listed and labeled
• Sanitary design
• Engineered for use in medical environments
• Units available with integral drain boards
• Complete line of faucets, spouts and valves available
• Custom configurations available
