Multiple Station Wash-Up Sinks
Specifications

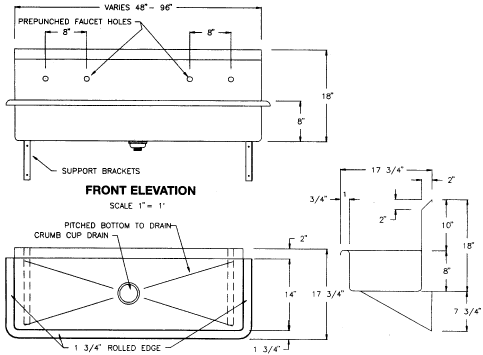

16 ga type 304 stainless steel. All welded coved corner construction. Unit is pitched to center drain for rapid drainage. Backsplash prepunched with faucet holes 8” on center. 1 3/4” rolled rim is standard. Unit is provided with chrome plated basket drain, heavy-duty stainless steel wall support brackets and full-length “Z” wall clip. Entire unit is polished to #3 finish for exceptional appearance and ease in cleaning. Unit is wall hung.
***Faucets are options
Performance Specifications
Ideal for factories, warehouses, schools, hospitals, institutions to provide an efficient easy-to-use multiple station wash-up sink. The unit is easy to install, made of durable, long-life, sanitary and easy-to-clean stainless steel.
Optional
T&S #B-223-1 sink mixing faucet – 6” swing nozzle with aerator and soap dish on 8” center with 1/2” NPS eccentric female inlets. Lever handles longer length available on request.
| Model No. | Length | # Faucets | Ship Wt. Lbs |
| MSWS-48 | 48" | 2 | 75 |
| MSWS-60 | 60" | 3 | 85 |
| MSWS-72 | 72" | 3 | 110 |
| MSWS-84 | 84" | 4 | 125 |
| MSWS-96 | 96" | 4 | 150 |
| * Special lengths and specifications are available . | |||
